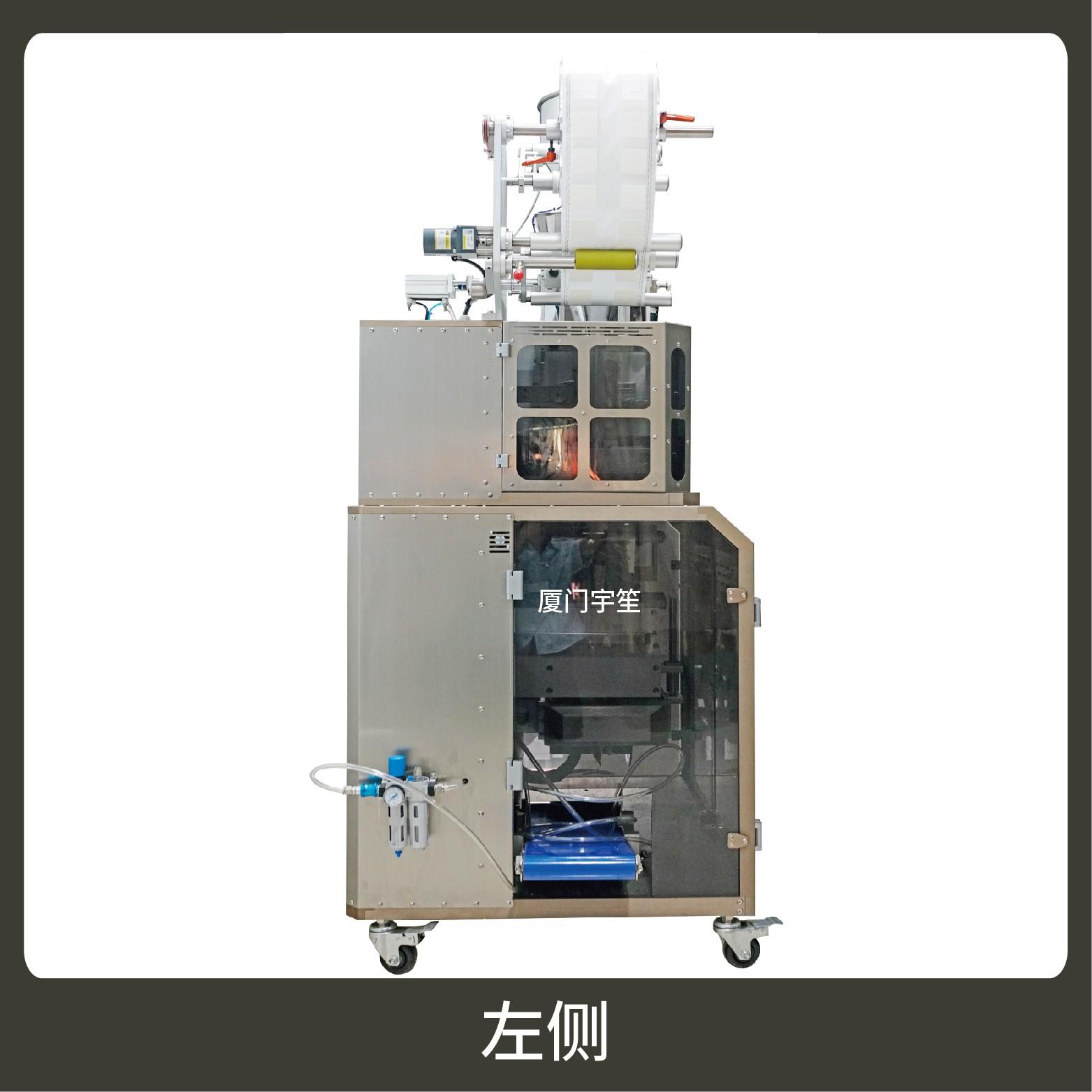

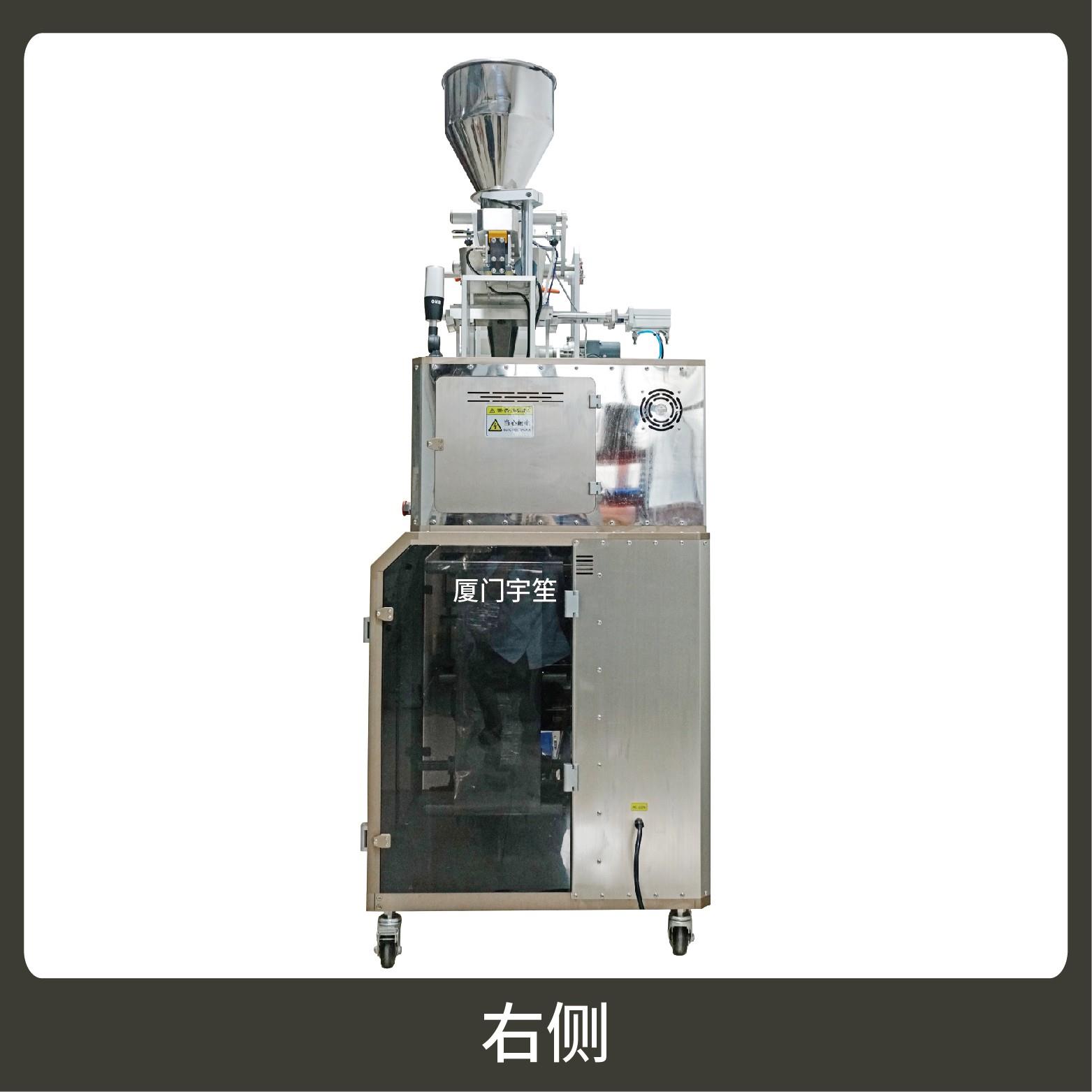

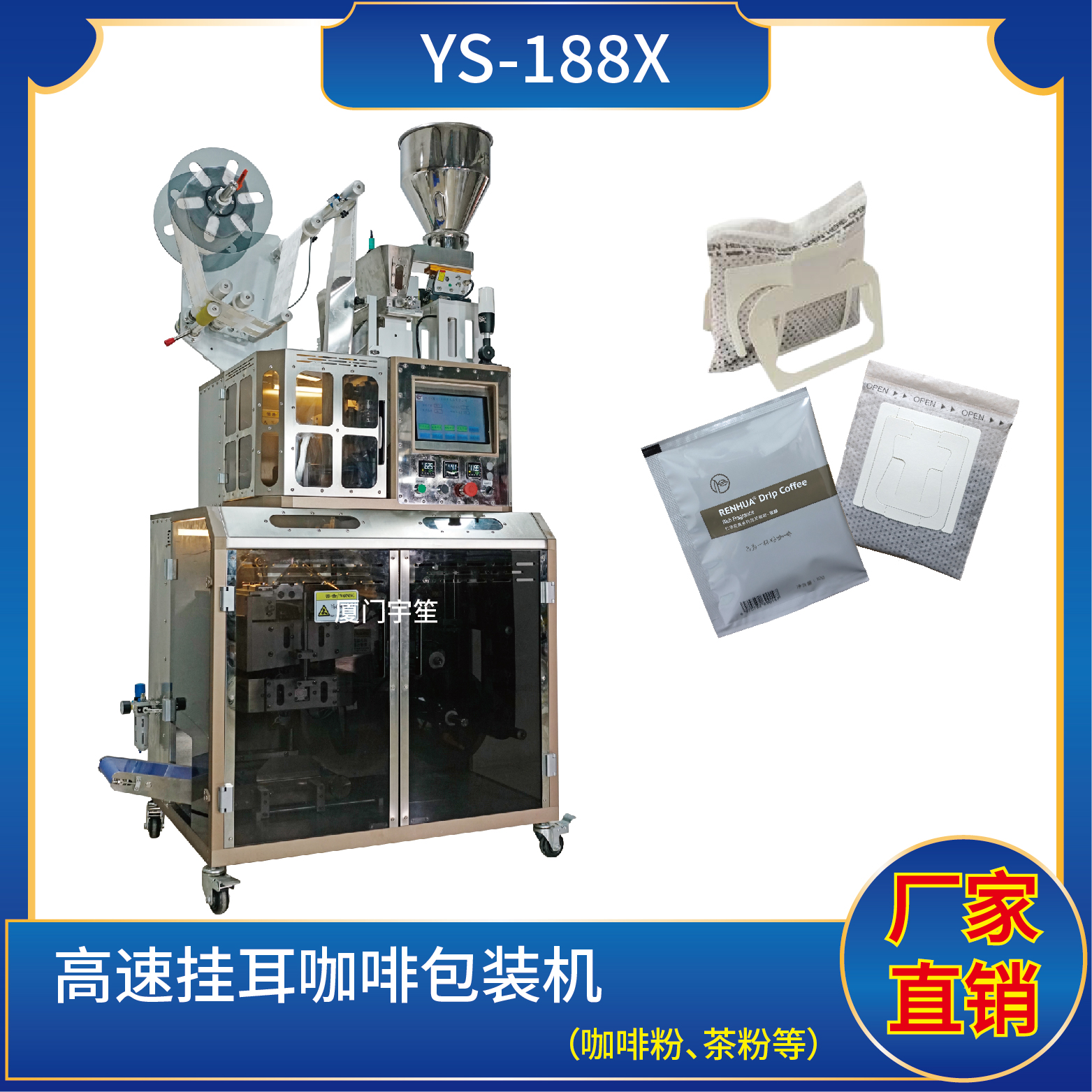

YS-188X High speed drip coffee bag（inner and outer）packing machine

YS-188X 高速掛耳咖啡內外袋包裝機

特  點 Characteristic

1、適用于咖啡粉、小顆粒狀物料。

The machine is suitable for ground coffee and small particulate material.

2、采用特定的掛耳式濾網、三邊封口、直接掛在杯子邊緣，咖啡沖泡效果更好，且袋型美觀,目前國外市場非常流行。

Adopt the special drip filter bag with three-sides sealing, which can be  directly hung against the cup edge to have a better brewing effect, moreover, the neat bag shape is a high fashion in the overseas markets.

3、本機具有自動完成制袋、計量、充填、封合、分切、計數、打印批號等功能。

The machine integrates automatic function, such as bag making, measuring, filling, sealing cutting, counting, batch number printing and other functions.

4、內袋為無紡布掛耳袋，沖泡方便且衛生。封口采用先進的超聲波封，封口效果好，袋形美觀。

The drip inner bag made of non-woven fabric, guarantees covenient and hygienic brewing. The sealing adopts the advanced  ultrasonic sealing, perfect sealing and beautiful bag type.

5、包裝材料：復合膜、尼龍、玉米纖維、掛耳咖啡膜。

Packing material：filter paper, composite membrane, nylon, corn fiber(Food grade)，drip fitter bag.

封口方式 Sealing Type

三邊封口Three sides sealing

技術參數

Technical Parameters

計量范圍：1 - 15 g

Measuring Scope

內袋尺寸：長 ( L ) ：70-80 mm   寬 ( W ) ：90/95 mm

Inner bag size

外袋尺寸：長 ( L ) ：120 -125mm   寬 ( W ) ：100/105 mm

Outer bag size

包裝速度：30-60 bags/min

Packing Speed

外型尺寸：1210 * 832 * 2141 mm

Dimension ( L * W * H )

整機重量：440 kg

Weight

總 功 率：AC220V / 50Hz / 3.7kw

Total Power

氣    源：≥0.6Mpa

Gas source
