YS-180SZ 雙室真空包裝機

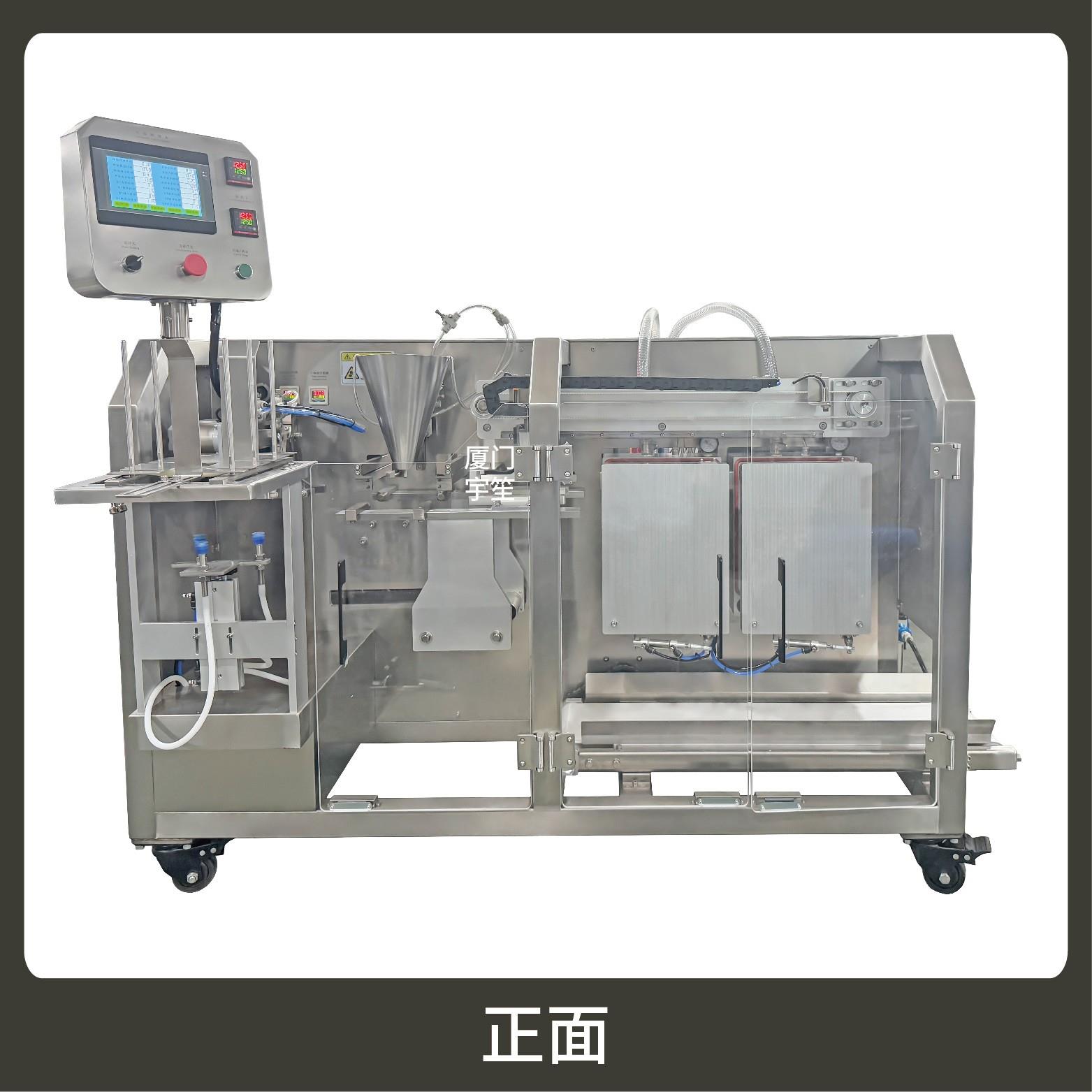

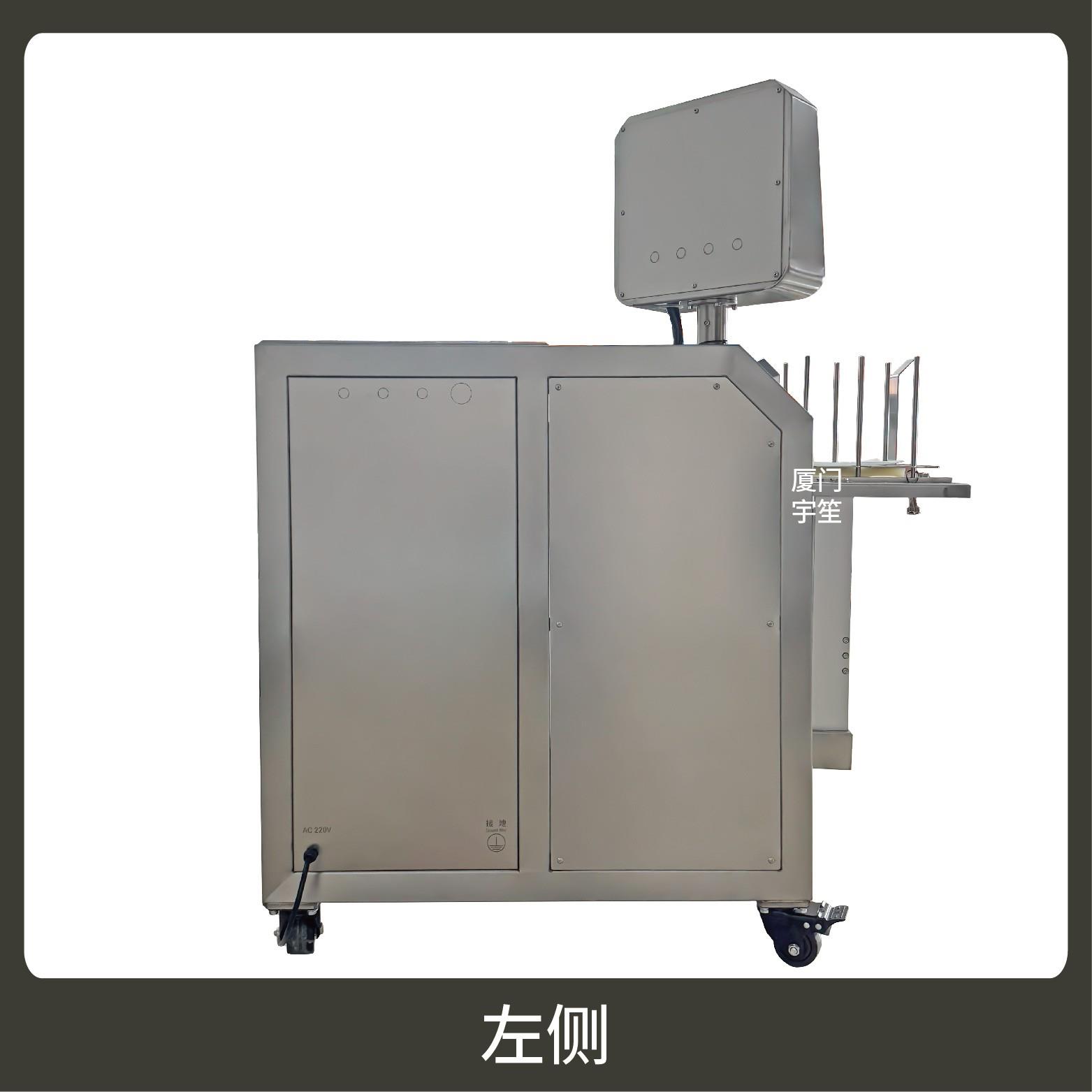

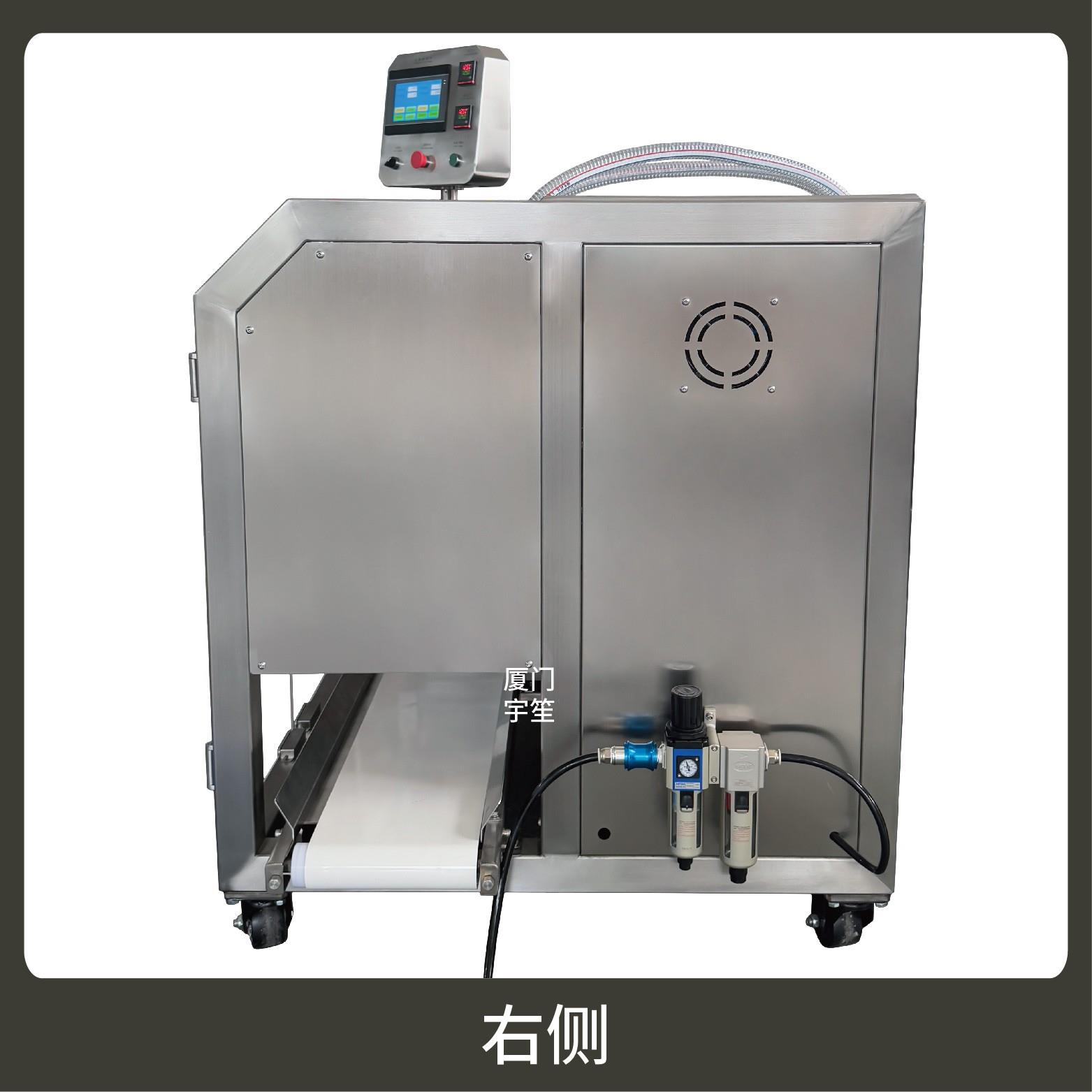

YS-SP180SZ雙室真空食品包裝機Double-Chamber Vacuum Food Packaging Machine
特點：

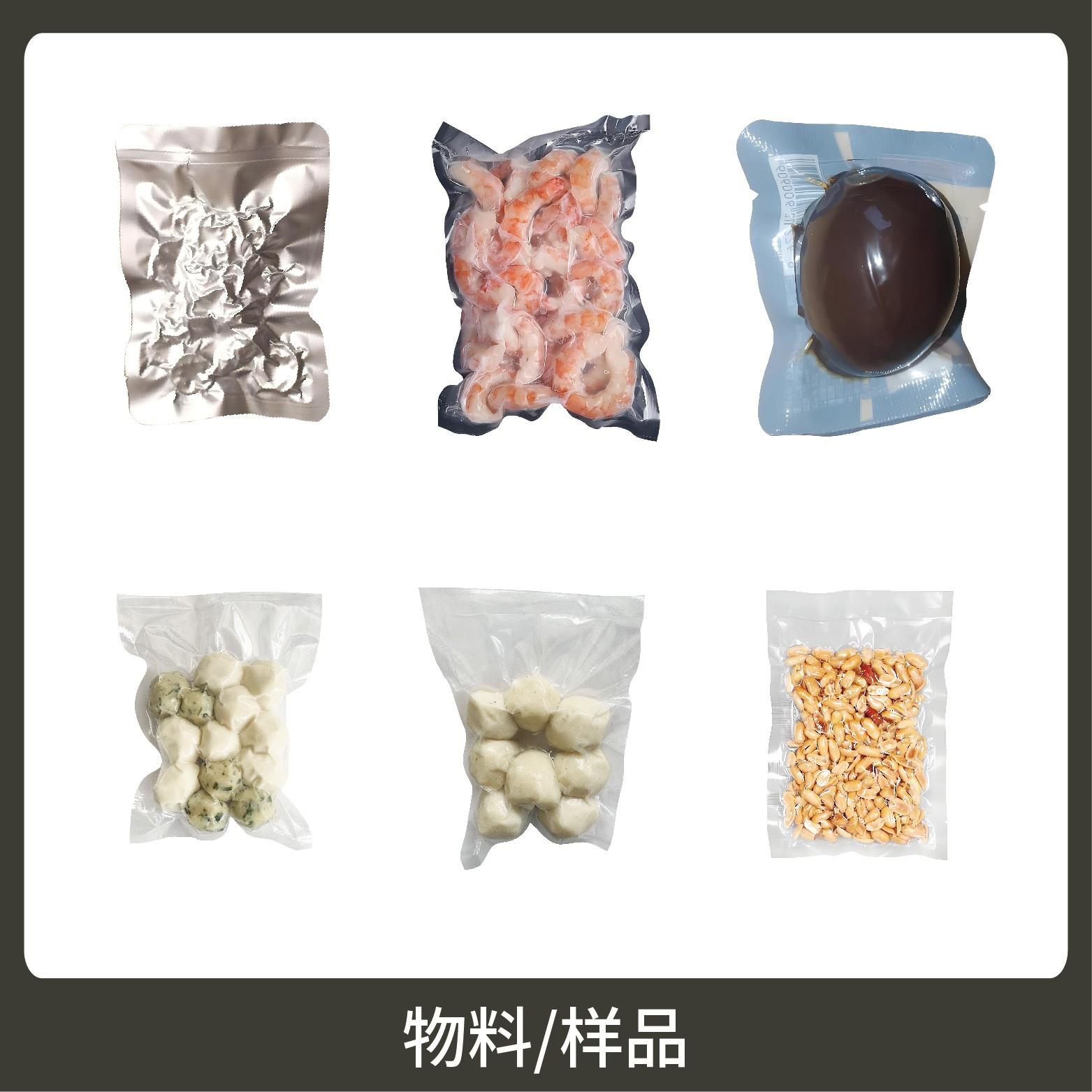

1、適用于各種休閑食品、冷凍食品、預制菜、海鮮等真空包裝，防止產品氧化霉變、腐爛及受潮，有效延長儲存或保鮮期限。
Suitable for vacuum packaging of various snack foods, frozen foods, prepared dishes, seafood, etc. It prevents products from oxidation, mildew, spoilage and moisture damage, and effectively extends the storage or freshness period.
2、包裝流程全自動，可抽真空（真空度可達到-0.1Mpa）。可根據充填物料的性質選配不同的下料結構。
The packaging process is fully automatic and can perform vacuum pumping (with a vacuum degree up to -0.1Mpa). Different feeding structures can be selected according to the nature of the filled materials.
3、整機可靠性好、操作簡單、包裝效率高，大容積，大抽氣量。
The whole machine has good reliability, is easy to operate, and has high packaging efficiency, large capacity and large pumping volume.
4、采用觸摸屏操作，PLC控制，封口溫度自動補償，控溫精準，封口美觀大方。
It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.
4、包裝材料：復合膜，如：純鋁，鍍鋁等預制袋。
Packing material: composite film, such as: pure aluminum, aluminum plating and other prefabricated bags.
技術參數：
計量范圍：20-500g
Measuring Scope
預制袋：長 ( L ) ：100 - 240mm
Prefab bag 寬 ( W ) ：130 - 180mm
包裝速度：5 - 18bags / min（視不同物料及袋子尺寸而定）
Packing Speed：（Depends on different materials and bag sizes）
外型尺寸：1718 * 1195 * 984 mm
Dimension ( L * W * H )
整機重量：550 kg
Weight
總 功 率：AC380V / 50 - 60Hz / 4.5kw
Total Power
氣 源：≥0.6Mpa
Gas source
1、適用于各種休閑食品、冷凍食品、預制菜、海鮮等真空包裝，防止產品氧化霉變、腐爛及受潮，有效延長儲存或保鮮期限。
Suitable for vacuum packaging of various snack foods, frozen foods, prepared dishes, seafood, etc. It prevents products from oxidation, mildew, spoilage and moisture damage, and effectively extends the storage or freshness period.
2、包裝流程全自動，可抽真空（真空度可達到-0.1Mpa）。可根據充填物料的性質選配不同的下料結構。
The packaging process is fully automatic and can perform vacuum pumping (with a vacuum degree up to -0.1Mpa). Different feeding structures can be selected according to the nature of the filled materials.
3、整機可靠性好、操作簡單、包裝效率高，大容積，大抽氣量。
The whole machine has good reliability, is easy to operate, and has high packaging efficiency, large capacity and large pumping volume.
4、采用觸摸屏操作，PLC控制，封口溫度自動補償，控溫精準，封口美觀大方。
It adopts touch screen operation, PLC control, automatic compensation of sealing temperature, precise temperature control, and beautiful sealing.
4、包裝材料：復合膜，如：純鋁，鍍鋁等預制袋。
Packing material： composite film, such as： pure aluminum, aluminum plating and other prefabricated bags.
計量范圍：20-500g
Measuring Scope
預制袋：長 ( L ) ：100 - 240mm
Prefab bag 寬 ( W ) ：130 - 180mm
包裝速度：5 - 18bags / min（視不同物料及袋子尺寸而定）
Packing Speed：（Depends on different materials and bag sizes）
外型尺寸：1718 * 1195 * 984 mm
Dimension ( L * W * H )
整機重量：550 kg
Weight
總 功 率：AC380V / 50 - 60Hz / 4.5kw
Total Power
氣 源：≥0.6Mpa
Gas source
1、適用于各種休閑食品、冷凍食品、預制菜、海鮮等真空包裝，防止產品氧化霉變、腐爛及受潮，有效延長儲存或保鮮期限。
Suitable for vacuum packaging of various snack foods, frozen foods, prepared dishes, seafood, etc. It prevents products from oxidation, mildew, spoilage and moisture damage, and effectively extends the storage or freshness period.
